Outside Framed 8 Ton Van

Posted Image

Been working on this little van - an Outside Framed 8 Ton Van from the David Geen whitemetal range. Still need to add rainstrips, I completely forgot about them! According to the instructions, these lovely O/F wagons were introduced in 1879 - although the Atkins et al bible seems to have different dates?


Posted Image
I tried out Vallejo acrylic primer this time, brush-painted on. Doesn't look so neat at first sight, but once the van was fully painted I couldn't tell the difference between that and those of my wagons done with spray-painted primer.


Posted Image

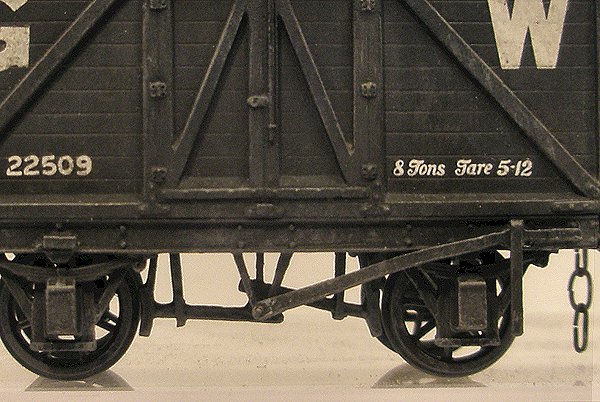

A nice feature of the kit is the inclusion of both grease and oil axleboxes (top lef and right respectively). The vans were built with grease axleboxes, but many later received oil boxes. The kit also provides for both non-reversible and reversible brake shoes.


Posted Image
I went for the grease boxes, but used the reduced 8 Ton classification to suggest the 1900s. I haven't been able to find any record of when the reversible shoes were introduced?


Posted Image
Posed in front of "The depot". My stock weathering techniques are still rather crude, so any suggestions for improvement are much appreciated!
